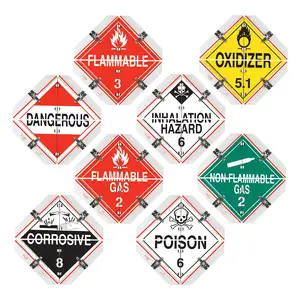

Super Flip Placard - 8 Legend, Worded, White Back Plate - Split Panel Main Image

Super Flip Placard - 8 Legend, Worded, White Back Plate - Split Panel

Kresky® flip book placard features legends Flammable Liquid, Corrosive, Oxidizer, Dangerous, Non-Flammable Gas, Inhalation Hazard, Poison & Flammable Gas. Split or rectangular panel.

Product Code:55276
Write The First Review
Placard Split Type: Split
No Split
Split
  • Flip-file placard meets DOT placarding specifications of 49 CFR § 172.519 for hazardous materials identification
  • J. J. Keller® Dura-Clip® fasteners stop clip arms from being dislodged
  • Legends manufactured of .024" aluminum (increased thickness from .020" to .024" for added strength)
  • Heavy-duty (super) placard legend features 33% thicker aluminum (.032" vs. industry-standard .024" or less)
  • Super back plate features 25% thicker aluminum (.040" vs. industry-standard .032") to better withstand abuse of challenging environments and provide long-term reliability & greater utility
  • Aluminum contains 75% post-consumer recycled content
  • Base and legends have pre-formed white painted finish
  • Four stainless steel reinforced quick-release clamps hold panels securely in place
  • Clipped corners on top and bottom to accommodate roll-up door applications
  • Full ink bleeds (color runs all the way to the edge of legend panels)
  • Available with split or rectangular panel design
    • Split panels feature triangle shape with 2-piece design for roll-up doors with <15" panels
    • Rectangular-shaped placard legend panels:
      • lessen risk of injury from bent and dog-eared pages
      • provide greater strength/rigidity all the way to corners
      • improve stability due to hinges being closer to panel corners
      • reduce noise and vibration which leads to long-term performance
      • improve placard appearance due to less hinges being used
  • Complies with ISO 9000 Green Initiative, California Buy Recycled program and EPA Comprehensive Procurement Guidelines (CPG) program

Back Plate Measurements:

  • Split Panel Placards:
    • Side to side - 14.25" x 14.25" (363mm x 363mm)
    • Corner to split (each 1/2 placard base) - 16" x 7.75" (408mm x 197mm)
  • Rectangle Panel Placards:
    • Side to side - 14.25" x 14.25" (363mm x 363mm)
    • Left to right (corner to corner) - 16" (408mm)
    • Top to bottom (corner to corner) - 15.5" (394mm)

Flip Placard Legends:

  • Class 3 Flammable Liquid
  • Class 8 Corrosive
  • Division 5.1 Oxidizer
  • Dangerous
  • Blank
  • Division 2.2 Non-Flammable Gas
  • Division 6.1 Inhalation Hazard
  • Division 6.1 Poison
  • Division 2.1 Flammable Gas

Size: 14.25" x 14.25"

Placard Corner Type: 4 Clipped Corners

Need to Purchase a Case?: 12 per case

Industry: Transportation

Material: Aluminum

Advantage Savings: Advantage Savings

Legend: Dangerous, Non-Flammable Gas - Division 2.2, Inhalation Hazard - Division 6.1, Poison - Division 6.1, Flammable Gas - Division 2.1, Flammable Liquid - Class 3, Corrosive - Class 8, Oxidizer - Division 5.1
