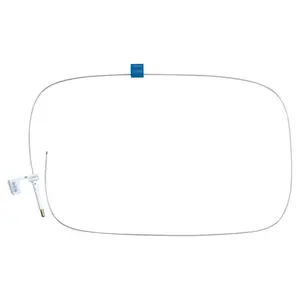

MegaLock Bolt/Cable Security Seal - Stock, White
High security seal features two locking mechanisms: bolt seal for trailer door latch; cable seal for lock rods on swing door trailers/containers. Color & personalization options.
Regulatory Alert: The International Standards Organization (ISO) has published ISO17712:2013, which included a major change to Clause 6, Evidence of Tampering. Effective May 15, 2014, responsibility for conducting tamper testing shifts from third-party testing labs to seal manufacturers, who must ensure their seals follow established and auditable tamper tests. Rest assured all our seals originate from trusted manufacturers whose seals meet the revised requirements.
- C-TPAT compliant; meets or exceeds ISO 17712 requirements as High Security Seals
- Includes laser etched triple numbering (dual numbering on the bolt seal and an additional matching number on the cable lock body) for greater security to protect against tampering and parts substition
- Combines two proven barrier seals — a bolt seal that secures the trailer door latch and a 43" cable seal (with its own separate locking body) to secure the lock rods on a swing door trailer or container
- Bolt includes an anti-spin feature that provides additional resistance to tampering by friction attacks
- Features two self-locking mechanisms and requires two cuts to remove the seal
- Pull apart strength of 3,306 lbs.
- Stock seals
- Available only with white bolt and blue cable lock body
- Pre-printed with "J J KELLER"
- Include 8-digit numbering on the bolt barrel, bolt pin head, and cable lock body
- Includes barcode 39 numbering on the bolt barrel
- Must be ordered in increments of 50 seals; minimum of 50 seals
- Most orders of stock seals ship in less than 24 hours
- Personalize Your Seals:
- Personalized seals are available for order by calling 1-877-564-2333
- Allow 14-18 weeks for your personalized seals to be delivered
- Personalized seals must be purchased with a minimum quantity of 250; sold in increments of 50
- All personalized seals feature a blue cable lock body
- Non-barcoded:
- Available in blue, green, red, white and yellow bolts
- With company name (upper case letters and numbers, up to 10 characters)
- Include sequential numbering of your choosing (up to 8 digits)
- Barcoded:
- Available in blue, green, red, white and yellow bolts
- Can be personalized with your company name (up to 10 characters)
- Include sequential numbering of your choosing (up to 8 digits)
- Feature Code 39 or Code 128 barcode numbering
Break Strength (in KGF): 1500
Break Strength (in LBF): 3306
Advantage Savings: Advantage Savings
Printing Method: Hot Stamp
High-Security / C-TPAT Compliant: Yes
Size: Pin: 3.35" L x .43" Dia. (shaft) x .86" Dia. (head)Bolt Barrel: 1.1" L x .86" Dia.Cable: .125" (3.5mm) Dia. x 61.25" L (overall)
Length: 61.25"
Need to Purchase a Case?: 50 per case
Industry: Transportation
UNSPSC Number: Locking bolts - 31161611
Removal Method: Bolt Cutter
Material: Aluminum lock body, strong steel cable combined with a mild steel bolt and barrel moulded with high impact ABS.
Weight: 13.5 lbs. (per carton of 50 seals)
