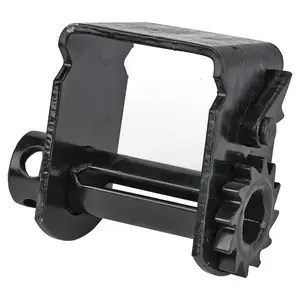

Product Information
- Complies with current Department of Transportation (DOT), Web Sling & Tie Down Association (WSTDA) T-3 standards, and Canadian Standard 905 regulations
- Standard bottom-mount base configuration allows for easy positioning in C-track, but locks into place when tension is applied
- Smooth ground web slots prevent web wear
- Seamless solid steel mandrel
- High-strength alloy pawl pins
- Strong heat-treated 7mm frame for lighter weight, fuel economy
- Available in two finishes:
- Black powder-coat finish withstands 250 hours of standard salt spray testing to ensure years of service
- Silver X-Treme Zinc finish provides greatly improved corrosion resistance when compared to painted or power-coated winches resulting in a longer lasting winch, plus the silver color blends in well with aluminum and hybrid trailers
- Working Load Limit (WLL): 6,000 lbs. (2,730 kg)
- Must be purchased in increments of 5 winches
- Dimensions:
- A - Overall Width 7.6"
- B - Inside frame width 4.6"
- C - Frame height 6.5"
- D - Frame depth 4.0"
Note: Letters listed above (A, B, C, D) correspond with letters in secondary product image
Specifications
Compliance Topic: Cargo Securement
Color: Black
Working Load Limit: 6,000 lbs. (2,730 kg)
Industry: Transportation
UPC: 09288830766-1
Material: Powder-coated steel
Weight: 7.70 lbs.
